GSX-223

Ultra-miniature SM Crystal

Frequency range	16.0 ~ 96.0MHz

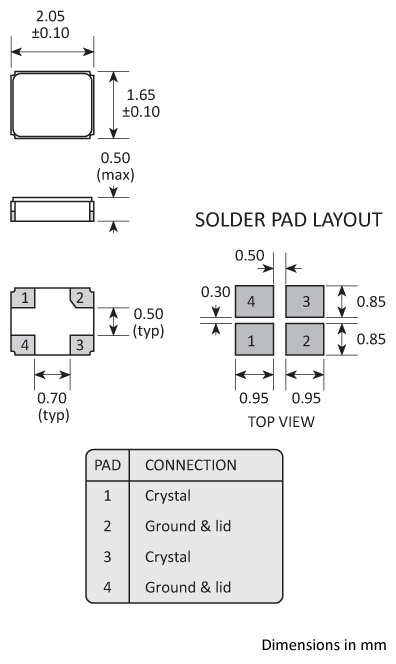

Dimensions	2.05 x 1.65 x 0.50mm
Storage temperature range	-40 to +85°C
Equivalent series resistance	150Ω max (16.0 ~ 23.99MHz) 100Ω max (24.0 ~ 35.99MHz) 60Ω max (36.0 ~ 54.0MHz) 50Ω max (60.0MHz) 30Ω max (76.8MHz) 20Ω max (96.0MHz)
Ageing	±1ppm max first year
Test drive level	10µW typ, 100µW max
Soldering condition	260°C, 10 sec x2 max
Net mass	5.63mg

To request a quotation for the GSX-223 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Our crystals and oscillators are regularly supplied for use with industry-leading ICs, from world-leading manufacturers including:

• Analogue Devices
• Atmel (Microchip Technology Inc.)
• Broadcom
• Dialog Semiconductor PLC
• Intel
• Nordic Semiconductor
• NXP Semiconductors
• Qualcomm (and CSR)
• Silicon Labs
• STMicroelectronics
• Texas Instruments (TI)
• Xilinx
• and more...



If you'd like more information about chipset compatibility please get in touch with our team here.

Human Body Model (HBM) 1A (250V to <500V)

Moisture Sensitivity Level (MSL): 1 (or not applicable)

Ceramic body with gold-plated pads Metal lid, seam sealed

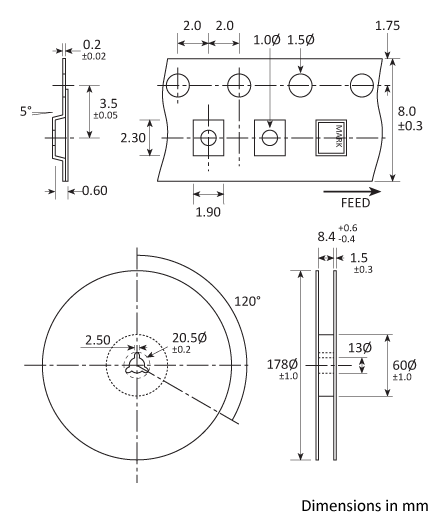

Please refer to our DOCUMENTS section for more information.

Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions.

REACH compliant.

Free of conflict minerals.

Free from halogens.

Free from ozone-depleting substances.
