GSX-315

Miniature SM 32.768kHz Watch Crystal

Frequency	32.768kHz

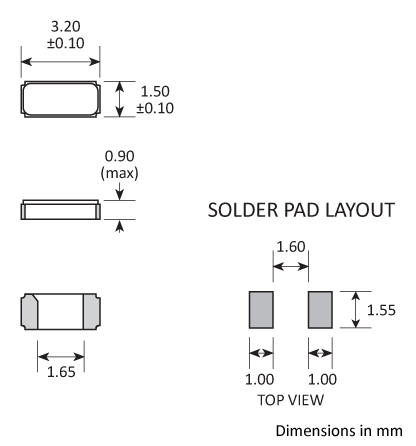

Dimensions	3.2 x 1.5 x 0.9mm
Operating temperature range	-40 to +85°C
Storage temperature range	-55 to +125°C
Static capacitance (C0)	2.0pF max
Motional capacitance (C1)	3.0fF min
Equivalent series resistance	50kΩ typ, 70kΩ max @ 25°C
Ageing	±3ppm max first year
Drive level	0.1µW typ, 0.5µW max
Turnover temperature (T0)	+25°C ±5°C
Frequency / temp coefficient	-0.04ppm/°C2 max
Shock resistance	3,000g, 0.3ms, ½ sine
Vibration resistance	20g, 55.0 ~ 2,000Hz
Soldering condition	Reflow, 260°C, 20 sec max
Net mass	25.5mg

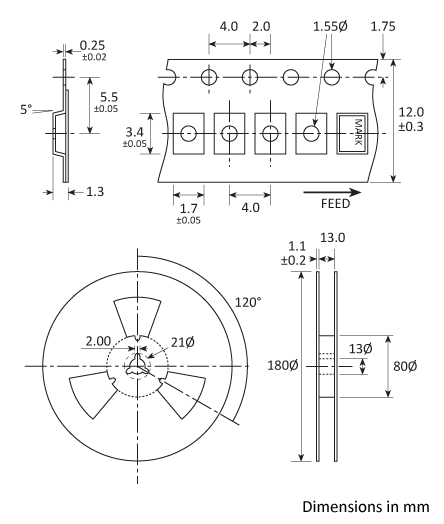

To request a quotation for the GSX-315 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Human Body Model (HBM) 1A (250V to <500V)

Moisture Sensitivity Level (MSL): 1 (or not applicable)

• Ceramic body with gold-plated pads
• Metal lid, seam sealed

Please refer to our DOCUMENTS section for more information.

Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions.

REACH compliant.

Free of conflict minerals.

Free from halogens.

Free from ozone-depleting substances.
