GSX-323 | Miniature 2.5 x 2.0mm SM Crystal for Bluetooth

Configurable Options
Frequency
kHz MHz GHz
Calibration tolerance
Any
±10ppm	1
±20ppm	2
Other value:

Temperature stability
Any
±10ppm	1
±20ppm	2
±30ppm	3
Other value:

Operating temperature range
Any
-10 to +60°C	1
-20 to +70°C	2
-30 to +80°C	3
-40 to +85°C	4
Other value:

Circuit condition
8pF	M
9pF	N
10pF	A
12pF	B
Other value:

Oscillation mode
Fundamental	F

Product Description

The GSX-323 is ideal for size-sensitive applications. measuring just 2.5 x 2.0 x 0.6mm, the ceramic package of this miniature surface mount crystal features a metal lid which can be grounded to minimize EMI, and is seam sealed for excellent long term stability as good as ±1ppm max first year ageing.

GSX-323 also features a choice of operating temperature ranges and temperature stabilities as tight as ±10ppm, and is available in a choice of circuit conditions at fundamental mode frequencies of 12.0 ~ 66.0MHz.

Specifications

Frequency range	12.0 ~ 66.0MHz
Dimensions	2.5 x 2.0 x 0.6mm
Storage temperature range	-40 to +85°C
Equivalent series resistance	150Ω max (12.0 ~ 15.9MHz) 100Ω max (16.0 ~ 19.9MHz) 60Ω max (20.0 ~ 29.9MHz) 50Ω max (30.0 ~ 34.9MHz) 40Ω max (35.0 ~ 66.0MHz)
Ageing	±1ppm max first year
Test drive level	10µW typ
Soldering condition	260°C, 10sec x2 max
Net mass	13.1mg

Package Drawing

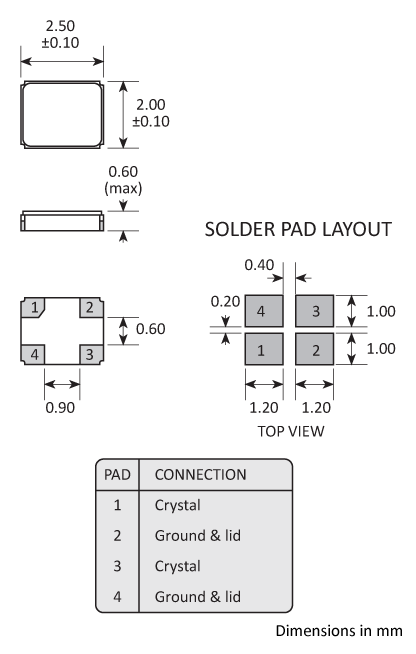

Package footprint and pad configuration drawing for the Golledge GSX-323 Crystal showing full dimensions.

Ordering Information

To request a quotation for the GSX-323 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
