GVXO-533 | 3.3V High Frequency VCXO - 6 Pad Package| Golledge

Configurable Options
Frequency
kHz MHz GHz
Frequency pullability
Any
±100ppm min (<80MHz only)	S
±50ppm min	N
Other value:

Frequency stability
Any
±50ppm max	B
±25ppm max (<52MHz only)	C
Other value:

Operating temperature range
Any
-10 to +70°C
-40 to +85°C	I

Product Description

Available over a very wide frequency range, from 1.0 - 125MHz, the GVXO-533 features industry-standard 6-pad configuration and miniature 5.0x3.2mm surface mount package,

The GVXO-533 is suitable for a wide range of possible applications, also offering a range of frequency stability and pullability options, including minimum pullability of ±100ppm. The option of industrial operating temperature range (-40 to +85°C) also widens the possible uses for this voltage controlled oscillator to encompass industrial projects.

The rise / fall time of this VCXO is exceptionally good at just 5ns maximum, and the GVXO-533, with CMOS output, also features fast start up time of just 10ms maximum.

Specifications

Frequency range	1.0 ~ 125MHz
Dimensions	5.0 x 3.2 x 1.5mm
Voltage control	+1.65V ±1.50V, 10% linearity
Storage temperature range	-40 to +85°C
Supply voltage (V_DD)	+3.3V (±5%)
Supply current	15mA max (1.0 ~ 30.0MHz) 25mA max (>30.0 ~ 52.0MHz) 35mA max (>52.0MHz)
Driving ability	15pF CMOS
Logic levels	‘0’ level = 10%V_DD max ‘1’ level = 90%V_DD min
Waveform symmetry	40:60 max @ 50%V_DD
Rise / fall time (20%~80%V_DD)	5ns max
Start up time	10ms max
Enable / disable function	Tristate (control via pad 2)

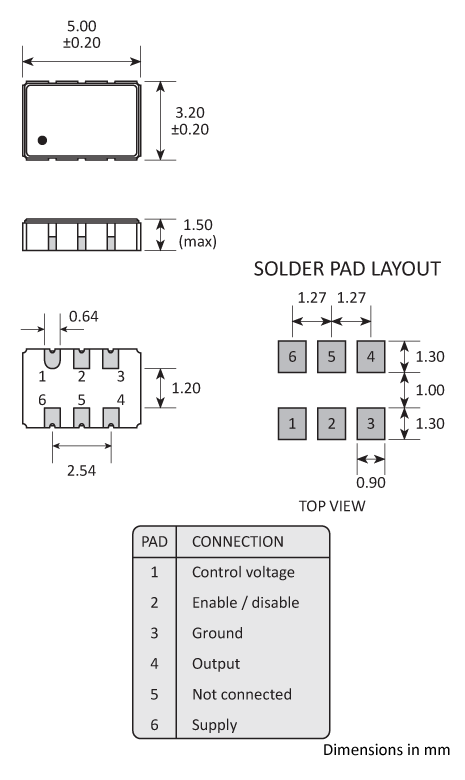

Package Drawing

Package footprint and pad configuration drawing for the Golledge GVXO-533 VCXO showing full dimensions.

Ordering Information

To request a quotation for the GVXO-533 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Once we've received your request our expert team will then produce a quotation tailored to meet your needs using the option codes you've selected.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
