CC6A-T1D
High Frequency Fundamental Mode SM Crystal -55+125°C
- Suitable for Avionics, Sat Comms etc
- Extended temperature range -55+125°C option
- High stability & low ageing
- High shock & vibration resistance
- Fundamental mode up to 70MHz
Specifications
| Frequency range |
16.0 ~ 70.0MHz |
| Dimensions |
3.5 x 2.2 x 0.9mm |
| Calibration tolerance (@ 25°C) |
±50ppm |
| Storage temperature range |
-55 to +125°C |
| Oscillation mode |
Fundamental |
| Equivalent series resistance |
60Ω typ, 120Ω max (16.0 ~ 19.99MHz) 40Ω typ, 85Ω max (20.0 ~ 23.99MHz) 30Ω typ, 50Ω max (24.0 ~ 39.99MHz) 20Ω typ, 40Ω max (40.0 ~ 70.0MHz) |
| Motional capacitance (C1) |
2fF typ, 4fF max (16.0 ~ 19.99MHz) 3fF typ, 5fF max (20.0 ~ 23.99MHz) 4fF typ, 6fF max (24.0 ~ 39.99MHz) 5fF typ, 8fF max (40.0 ~ 70.0MHz) |
| Static capacitance (C0) |
1.5pF typ (16.0 ~ 19.99MHz) 2.0pF typ (20.0 ~ 23.99MHz) 2.5pF typ (24.0 ~ 39.99MHz) 3.0pF typ (40.0 ~ 70.0MHz) |
| Ageing |
±3ppm max first year |
| Drive level |
100µW typ, 250µW max |
| Shock resistance |
5,000g, 0.3ms, ½ sine |
| Vibration resistance |
20g rms 10.0 ~ 2,000Hz |
| Terminations |
Gold flashed pads |
| Soldering condition |
260°C, 20s max |

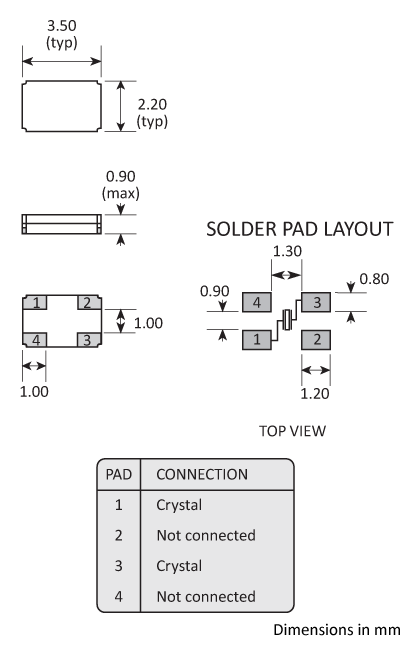

Package Drawing
Ordering Information
To request a quotation for the CC6A-T1D please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.
Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
Tape & Reel Specification
A:178* B:12 C:4 D:2.6 E:4 F:1.1 G:80 H:21
*Larger reel size available. Please ask for details
Handling & Storage
Human Body Model (HBM) 1A (250V to <500V)
Moisture Sensitivity Level (MSL): 1 (or not applicable)
Construction
Ceramic base and lid
Compliance
Lead-free (< 0.1% by weight )
RoHS compliant with no exemptions. See our declaration
REACH compliant. See our statement
Free of conflict minerals. See our declaration
Free of Halogens. See our declaration
Free of Ozone-depleting substances. See our declaration
