CC6F-T1A | High Frequency Fundamental Mode SM Crystal -55+125°C

Configurable Options
Frequency
kHz MHz GHz
Calibration tolerance
±50ppm
Other value:

Temperature stability / range
Any
±30ppm over -40 to +85°C
±80ppm over -40 to +125°C
±100ppm over -55 to +125°C	M
Other value:

Circuit condition
10pF
Other value:

Product Description

The miniature surface mount crystal CC6F-T1A uses inverted mesa technology to allow high frequency fundamental mode performance up to 250MHz, suitable for achieving enhanced pulling range and phase noise performance, dependent on circuit design.

The CC6F-T1A features a miniature 3.5 x 2.2 x 0.7mm package with gold plated pads for excellent longevity and solderability, and excellent shock resistance up to 5,000g, and vibration resistance of 20g. With extended military operating temperature range of -55 to 125°C available the CC6F-T1A is an ideal crystal for high frequency military, avionics and down hole applications.

Specifications

Frequency range	30.0 ~ 250MHz
Dimensions	3.5 x 2.2 x 0.7mm
Storage temperature range	-55 to +125°C
Static capacitance (C₀)	2.4pF typ @ 50.0MHz 2.9pF typ @ 155.52MHz
Motional capacitance (C₁)	2.7fF typ @ 50.0MHz 5.6fF typ @ 155.52MHz
Equivalent series resistance	50Ω typ, 100Ω max @ 50.0MHz 15Ω typ, 35Ω max @ 155.52MHz
Ageing	±3ppm max first year
Drive level	100µW max
Shock resistance	±5ppm, 5,000g, 0.3ms, ½ sine
Vibration resistance	±5ppm, 20g, 10.0 ~ 2,000Hz
Terminations	Gold plated pads
Soldering condition	Reflow, 260°C, 20 sec max

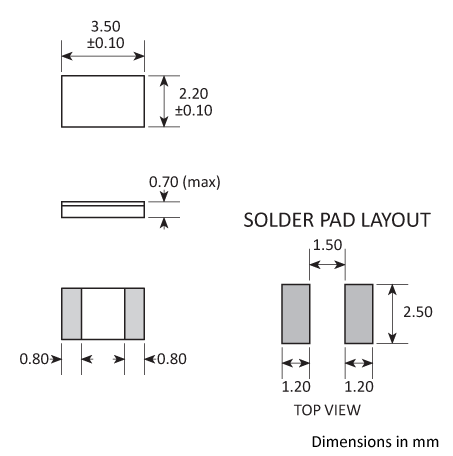

Package Drawing

Package footprint and pad configuration drawing for the Golledge CC6 Crystal showing full dimensions.

Ordering Information

To request a quotation for the CC6F-T1A please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
