Golledge 6x2mm cylinder thru-hole crystal package

GCX-26

Low Frequency Cylindrical Leaded Crystal

  • Wide frequency range
  • Available with formed leads
  • High shock resistance options available
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Operating temperature range
I
Quantity / Special Request

Please specify the quantity you require below.

The GCX-26 is supplied in bulk. 1k pcs per bag is the maximum bag size for this product.

Product Description

The GCX-26 crystal is available at frequencies between 30.0 ~ 165kHz and features a range of excellent frequency tolerance and temperature stability options.

The GCX-26 is no longer recommended for new designs, if your new design requires a leaded product please consider the MS3V-T1R with formed leads as an alternative option. The GSCX-26 formed lead crystal is also an available alternative for new designs that require low frequencies.

Specifications
Frequency range 30.0 ~ 165kHz
Dimensions ⌀2.0 x 6.2mm
Calibration tolerance ±30ppm max
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.034 ±0.006ppm/°C2 typ
Circuit condition 12.5pF
Static capacitance (C0) 0.8 ~ 1.7pF
Motional capacitance (C1) 1 ~ 4fF typ
Equivalent series resistance 30 ~ 50kΩ max
Ageing ±5ppm max first year
Drive level 1.0µW max

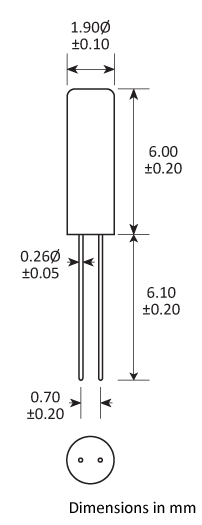

Package Drawing
Golledge 2x6 cylinder crystal package
Ordering Information

To request a quotation for the GCX-26 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Press seal

Compliance

PB free icon Lead-free (< 0.1% by weight )

ROHS icon RoHS compliant with no exemptions. See our declaration

REACH icon REACH compliant. See our statement

Conflict minerals icon Free of conflict minerals. See our declaration

Halogen free icon Free of Halogens. See our declaration

Ozone depletion icon Free of Ozone-depleting substances. See our declaration
