GTXO-C73V

GTXO-C73V

Stratum 3 SM TCXO with CMOS output and voltage control

  • Stratum 3 VCTCXO
  • Overall ±4.6ppm including 20 years aging
  • Miniature 7050 package
  • 3.3 & 5V with CMOS Output
  • Voltage Control
Configurable Options
ParameterOption Code
Frequency
Temperature stability
C
D
Supply voltage (VDD)
L
P
Temperature range
I
Quantity / Special Request

Please specify the quantity you require below.

The GTXO-C73V is supplied on tape and reel. 1k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GTXO-C73V is a Stratum 3 compliant temperature compensated oscillator specially developed for the telecoms industry. This VCTCXO features CMOS output and superb frequency stability of just ±4.6ppm over 20 years, inclusive of frequency stability over temperature, voltage, load, 20 years ageing and shock and vibration.

This VCTCXO also features voltage control from 0.5V ~ 2.5V and a wide pulling range of ±5.0ppm minimum.

The GTXO-C73V is also available in a ten pad 7050 surface mount package with additional enable/disable tristate functionality. Please speak to a member of our expert team for more information if you require this option.

Specifications
Frequency range 5.0 ~ 52.0MHz
Dimensions 7.0 x 5.0 x 2.1mm
Frequency stability over 20 years
*1 see note below
±4.6ppm
Holdover stability
*2 see note below
±0.32ppm max over 24hrs
Storage temperature range -55 to +125°C
Supply current 6.0mA typ
Driving Ability 15pF CMOS
Logic levels ‘1’ level = 90%VDD min
‘0’ level = 10%VDD max
Output Duty Minimum: 45%
Maximum: 55%
Control Voltage Range 0.5V ~ 2.5V
Pulling Range ±5.0ppm min
VC Input Impedence 100kΩ
Start up time 2.0ms max
Phase noise (typ @ 10.0MHz) -130dBc/Hz @ 100Hz
-145dBc/Hz @ 1kHz
-154dBc/Hz @ 10kHz

*1 Stability is inclusive of frequency stability over temperature, voltage, load, 20 years ageing, shock & vibration

*2 Holdover stability is inclusive of frequency stability over temperature, voltage (±5%) and ageing (24hrs)

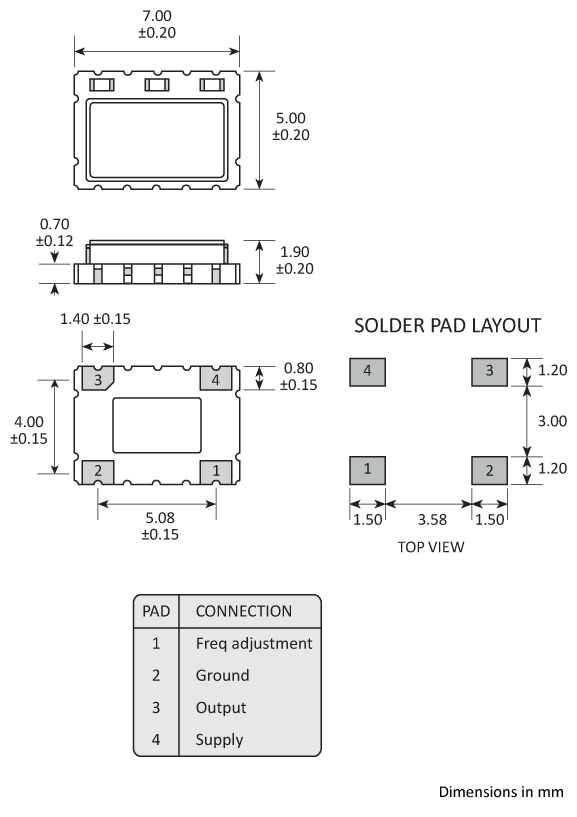

Package Drawing
Footprint
Ordering Information

To request a quotation for the GTXO-C73V please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic body with gold-plated pads Metal lid, seam sealed

Compliance

Please refer to our DOCUMENTS section for more information.

ROHS icon RoHS compliant with no exemptions.

REACH icon REACH compliant.

Conflict minerals icon Free of conflict minerals.

Halogen free icon Free from halogens.

Ozone depletion icon Free from ozone-depleting substances.
