GXO-2201L

3.3V CMOS Oscillator with Low Jitter

Frequency range	1.50 ~ 54.0MHz

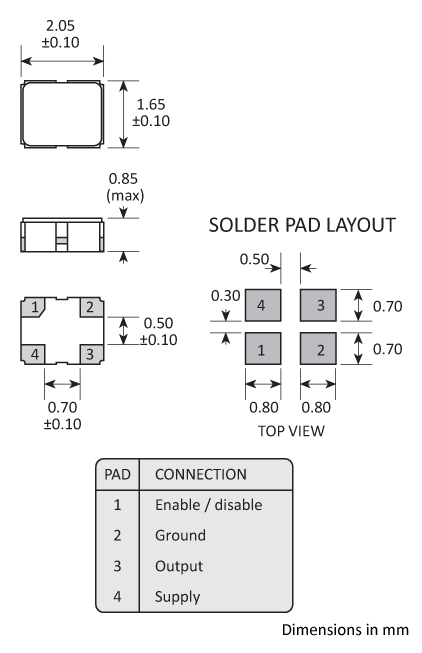

Dimensions	2.0 x 1.6 x 0.85mm
Operating temperature range	-20 to +70°C
Storage temperature range	-40 to +85°C
Supply voltage (VDD)	+3.3V (±5%)
Supply current	3.5mA max (< 24.0MHz) 5.0mA max (24.0 ~ 39.9MHz) 8.0mA max (>= 40MHz)
Logic levels	‘0’ level = 10%VDD max ‘1’ level = 90%VDD min
Start up time	10ms max
Waveform symmetry	45:55 max @ 50%VDD
Driving ability	15pF CMOS
Rise / fall time (10~90%VDD)	4.5ns max
Enable / disable function	Tristate (control via pad 1)
Period jitter RMS	5ps max
Phase jitter RMS	1ps max, 12kHz~20MHz
Ageing	±5ppm max 1st year
Net Mass	8.86mg

To request a quotation for the GXO-2201L please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Input (pad 1)	Output (pad 3)
Open	Enabled
'1' level	Enabled
'0' level	High Impedance

Human Body Model (HBM) 1A (250V to <500V)

Moisture Sensitivity Level (MSL): 1 (or not applicable)

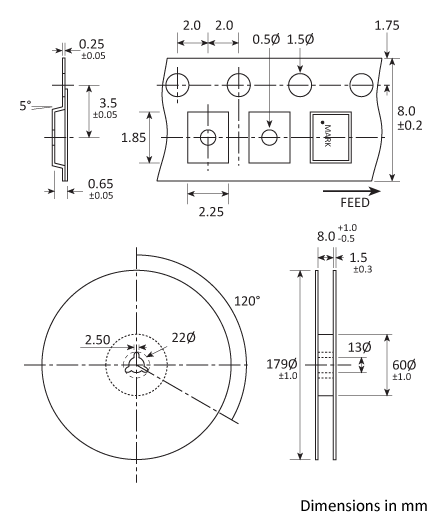

• Ceramic body with gold-plated pads
• Metal lid, seam sealed

Please refer to our DOCUMENTS section for more information.

Lead-free (< 0.1% by weight )

RoHS compliant with no exemptions.

REACH compliant.

Free of conflict minerals.

Free from halogens.

Free from ozone-depleting substances.
