6-pad 7050 Golledge Oscillator

GXO-L76L

3.3V UHF Oscillator with LVDS output and enable/disable tristate function

  • LVDS output
  • Wide Frequency range
  • Enable / disable tristate function
  • Short lead times
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Frequency stability
* see note below
B
A
Operating temperature range
I

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range, supply voltage change, load change, shock and vibration.

Quantity / Special Request

Please specify the quantity you require below.

The GXO-L76L is supplied on tape and reel. 2k pcs per reel is the standard T&R pack size for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The GXO-L76L 3.3V oscillator features LVDS output and is available from 10MHz up to ultra high frequency (UHF) of 1500MHz (1.5GHz).

This 7x5mm oscillator with seam sealed package also features good frequency stability with ±25ppm stability option available, enable/disable tristate functionality as standard, and low phase jitter characteristics of 3ps (>40MHz).

The GXO-L76L is ideal for a wide range of applications including telecoms, L-band radar such as GPS, global positioning and satellite phone, and ultra wide band radar applications such as military and ground penetrating radar (GPR).

Specifications
Frequency range 10.0 ~ 1500.0MHz
Storage temperature range -55 to +125°C
Supply voltage (VDD) +3.3V (±5%)
Supply current 60mA max
Output LVDS
Offset voltage 1.25V typ
Differential output voltage 0.33V typ
Output load 100Ω
Start up time 10ms max
Dimensions 7.5 x 5.0 x 1.5mm
Waveform symmetry 45:55 max @ 50%VP-P
Rise / fall time 1.0ns max (20 ~ 80%VP-P)
Enable / disable function Tristate (control via pad 1)
Output enable / disable time 10 ms / 200ns max
Phase jitter RMS 3ps max (> 40MHz), 12kHz~20MHz
Package Drawing

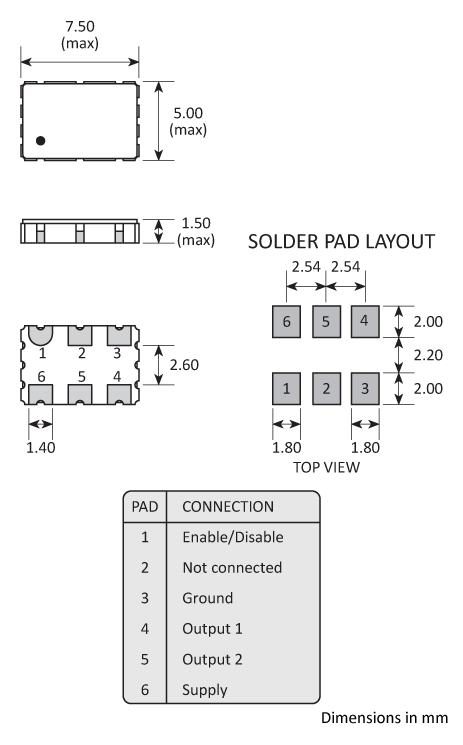

Package footprint and pad configuration drawing for a 7050 6-pad Golledge Oscillator showing full dimensions.
Ordering Information

To request a quotation for the GXO-L76L please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Enable / Disable Function
Input (pad 1)Output 1 (pad 4)Output 2 (pad 5)
Open Enabled Enabled
'1' level (≥0.7 VDD) Enabled Enabled
'0' level (≤0.3 VDD) High Impedance High Impedance
Marking
Marking
Marking
Soldering Profile

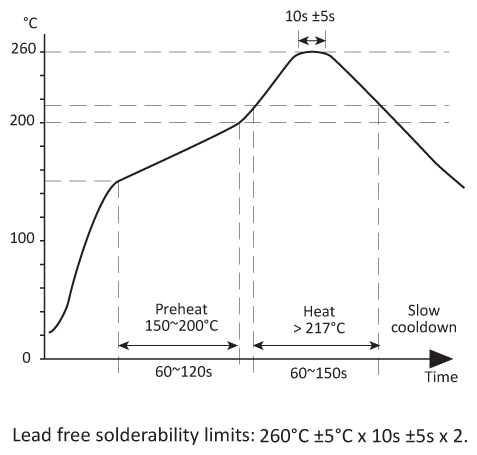

Solder reflow profile for the GTXO-C77V
Tape & Reel Specification
Tape and Reel specifications
Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction
  • Ceramic body with gold-plated pads
  • Metal lid, seam sealed
Compliance

PB free icon Lead-free (< 0.1% by weight )

ROHS icon RoHS compliant with no exemptions. See our declaration

REACH icon REACH compliant. See our statement

Conflict minerals icon Free of conflict minerals. See our declaration

Halogen free icon Free of Halogens. See our declaration

Ozone depletion icon Free of Ozone-depleting substances. See our declaration
