GXO-U108L | 3.3V 7x5mm Oscillator with Power Saving

Configurable Options
Frequency
kHz MHz GHz
Frequency stability ^* see note below
Any
±100ppm
±50ppm	B
±25ppm	A
±20ppm	D
Operating temperature range
Any
-10 to +70°C
-40 to +85°C	I

Product Description

The GXO-U108L offers study stability over an exceptionally wide available frequency range, starting at a very low 12.0kHz and extending to a top end frequency of 170MHz. An industry standard for several years, the robust 7x5mm surface mount package is a reliable drop in replacement for many existing designs. With 3.3V supply voltage, built in enable/disable tristate functions and power saving mode to ensure low supply current requirement (as low as 12mA max. and 10uA stand-by current), this component can also be useful for low-power requirement new designs.

Available in a choice of commercial or industrial operating temperature ranges the GXO-U108L is a versatile component offering a range of frequency stabilities at low supply current, within an industry standard package.

Specifications

Frequency range	12.0kHz ~ 170MHz
Dimensions	7.5 x 5.0 x 1.4mm
Storage temperature range	-55 to +125°C
Supply voltage (V_DD)	+3.3V (±0.3V)
Supply current	12mA max (≤32.0MHz) 17mA max (>32.0 ~ 50.0MHz) 18mA max (>50.0 ~ 67.0MHz) 40mA max (>67.0 ~ 125MHz) 50mA max (>125 ~ 170MHz)
Logic levels	‘0’ level = 10%V_DD max ‘1’ level = 90%V_DD min
Start up time	5ms max (≤32MHz) 10ms max (>32MHz)
Waveform symmetry	45:55 max (≤50.0MHz) 40:60 max (>50.0MHz)
Driving ability	10 LSTTL 15pF CMOS
Rise / fall time	7ns max (<80.0MHz) 4ns max (80.0 ~ 125MHz) 3ns max (125 ~ 170MHz)
Enable / disable function	Tristate (control via pad 1) 10ms / 100ns
Stand-by current	10µA
Net mass	135mg

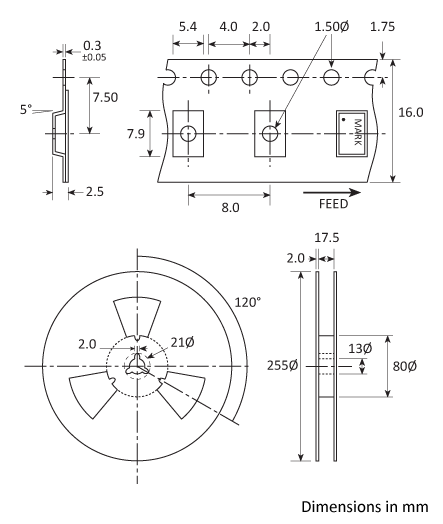

Package Drawing

Package footprint and pad configuration drawing for the Golledge 7050 h=1.4mm 4-pad Oscillator showing full dimensions.

Ordering Information

To request a quotation for the GXO-U108L please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
