Golledge HCD 15mm OCXO

HCD371

OCXO CMOS Output Low Height

  • Low height compact package
  • Temperature stability down to 5ppb
  • Single 12V supply (15V or 18V optional)
  • Standard European IEC CO-08 pin-out
  • Custom options available
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Frequency
Ageing per day (at despatch)
D
E
F
Temperature stability
P
R
S
Operating temperature range
A
C
F
Supply voltage (VDD)
N
P
R
Quantity / Special Request

Please specify the quantity you require below.

The HCD371 is supplied in boxes. 10 pcs per box is the maximum box size for this product.

Product Description

The low profile HCD371 oven controlled oscillator features low height package of 36.1 x 27.2 x 16.0mm, and produces CMOS/TTL compatible output.

This OCXO features exceptionally tight temperature stability of ±5ppb and low phase noise specifications, with 10.0MHz performance producing phase noise of -155dBc/Hz @ 10kHz, in addition to excellent ageing characteristics, with options of <±2 x 10-10 per day at dispatch.

The HCD371 is available with 12.0V single oven and oscillator supply, with 15.0V or 18.0V also available on request.

Specifications
Frequency range 5.0 ~ 20.0MHz
Dimensions 36.1 x 27.2 x 15.5mm
Frequency stability < ±5x10-8 per year
< ±1x10-9 per 10% change in VDD
Allan deviation (ADEV), 1 sec < ±1x10-11
Storage temperature range -40 to +90°C
Output waveform CMOS / TTL compatible
Frequency adjustment ±5x10-7 (typ) over +0.5 to +7.0V
(sufficient for 10 years ageing min)
Stabilised +7.0V supply provided
Power consumption 5.0W max at switch on
1.2W typ when stabilised at 25°C
Warm up < ±1x10-8 after 10mins at +20°C
Phase noise (@ 10.0MHz) < -125 dBc/Hz @ 10Hz
< -135 dBc/Hz @ 100Hz
< -150 dBc/Hz @ 1kHz
< -155 dBc/Hz @ 10kHz
< -155 dBc/Hz @ 50kHz
Harmonics < -30dB wrt carrier
Shock (IEC 68-2-27 Test Ea) 50g for 11ms
Vibration (IEC 68-2-06 Test Fc) 10-55Hz, 1.5mm. 55-500Hz, 10g

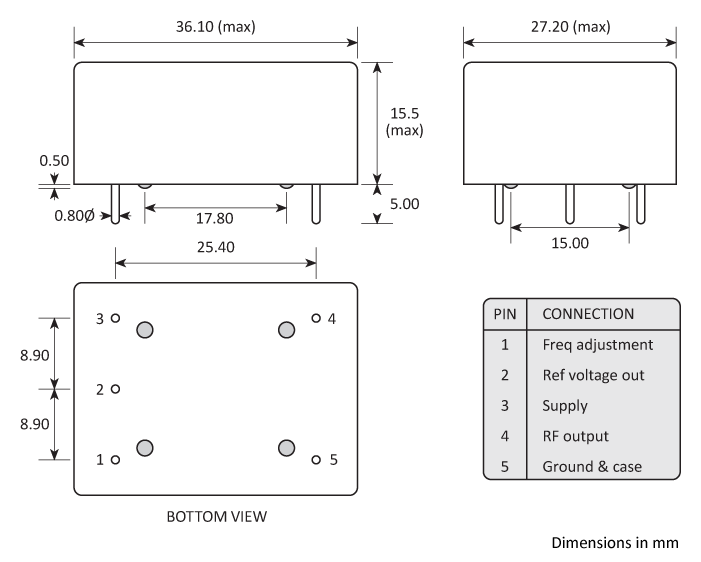

Package Drawing
Package footprint and pad configuration drawing for the Golledge HCD300 series OCXOs showing full dimensions.
