HCD380 | Low Phase Noise, High Frequency OCXO with Sine Output

Configurable Options
Frequency
kHz MHz GHz
Ageing per day (at despatch)
Any
< 5x10^-9	B
< 3x10^-9	C
< 1x10^-9	D
Temperature stability
Any
< 5x10^-8	N
< 2x10^-8	P
< 1x10^-8	R
Operating temperature range
Any
0 to +50°C	A
-10 to +60°C	C
-20 to +70°C	F
Supply voltage (V_DD)
Any
+9V (±0.5V)	M
+12V (±0.5V)	N
+15V (±0.5V)	P
+18V (±0.5V)	R

Product Description

The HCD380 oven controlled oscillator with sine wave output is available up to very high frequency of 100MHz with very low phase noise.

The internal oscillator within the HCD380 has been specifically designed not to include multiplication, ensuring ultra-low phase noise performance down to -160dBc/Hz @10kHz, even at very high frequencies.

This OCXO also features excellent temperature stability, good frequency adjustment (covering 10 years ageing minimum), and offers a choice of supply voltages and operating temperature ranges.

Specifications

Frequency range	30.0 ~ 100MHz
Dimensions	36.1 x 27.2 x 15.5mm
Frequency stability	< 1 to 5x10^-7 per year < 5x10^-9 per 10% change in V_DD
Storage temperature range	-40 to +90°C
Output waveform	Sine wave, 7dBm (±1dBm) into 50Ω
Frequency adjustment	±5x10^-7 (typ) over +0.5 to +6.0V (sufficient for 10 years ageing min) Stabilised +6.0V supply provided
Power consumption	4.5W max at switch on 1.0W typ when stabilised at +25°C
Warm up	< 5x10^-8 after 10mins at +25°C
Allan deviation (ADEV), 1 sec	< 2x10^-11
Phase noise (@ 50.0MHz)	< -75 dBc/Hz @ 1Hz < -105 dBc/Hz @ 10Hz < -135 dBc/Hz @ 100Hz < -150 dBc/Hz @ 1kHz < -160 dBc/Hz @ 10kHz < -160 dBc/Hz @ 50kHz
Shock (IEC 68-2-27 Test Ea)	50g for 11ms
Vibration (IEC 68-2-06 Test Fc)	10-55Hz, 1.5mm. 55-500Hz, 10g

Package Drawing

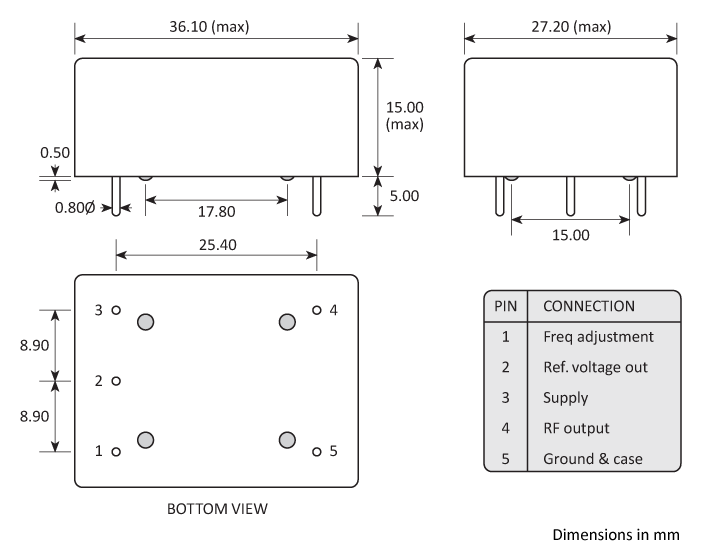

Package footprint drawing for the Golledge HCD300 series pcb mount OCXO.

Ordering Information

To request a quotation for the HCD380 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.
