OV7605C8

Low Power Fully Ceramic 32.768kHz SM Oscillator

  • Ultra low power consumption
  • Fully ceramic 32.768kHz oscillator
  • Tight frequency tolerance
  • Optional AEC-Q200 qualification
  • High shock and vibration resistance
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Calibration tolerance
B
Qualification
A
Quantity / Special Request

Please specify the quantity you require below.

The OV7605C8 is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The OV7605C8 is an ultra-miniature, fully ceramic, 32.768kHz oscillator operable from 1.6-5.5V, and features tight calibration tolerance and ultra-low current consumption of 0.45μA typical.

The OV7605C8 has ±20ppm calibration tolerance, with other values available on request. This oscillator also features low ageing characteristics of just ±3ppm first year maximum at 25°C, and is optionally available with AEC-Q200 qualification.

Encased within an ultra-miniature 2.0 x 1.2 x 0.85mm package, the OV7605C8 also has good shock and vibration resistance and is available with -40 to +85°C operating temperature range.

Specifications
Frequency 32.768kHz
Dimensions 2.0 x 1.2 x 0.85mm
Operating temperature range -40 to +85°C
Turnover temperature (T0) +25°C ±5°C
Frequency / temp coefficient -0.035ppm/°C2 ±10%
Storage temperature range -55 to +125°C
Supply voltage (VDD) Operable from 1.6 ~ 5.5V
Supply current (backup mode) 0.45μA typ, 0.65μA max
(VDD 3.0V, output disabled)
Logic levels ‘0’ level = +0.4V max
‘1’ level = VDD-0.4V min
Waveform symmetry 40:60 max @ 50%VDD
Driving ability 10pF CMOS
Voltage coefficient ±3ppm/V max
Rise / fall times 30ns typ, 70ns max
Start up time 500ms max @ 25°C
Enable / disable function Control via pad 3
Ageing ±3ppm max first year @ 25°C
Shock resistance ±5ppm, 5,000g, 0.3ms ½-sine
Vibration resistance ±5ppm, 20g rms 10.0 ~ 2,000Hz
Soldering condition Reflow, 260°C, 20 sec max
Net mass 6.0mg

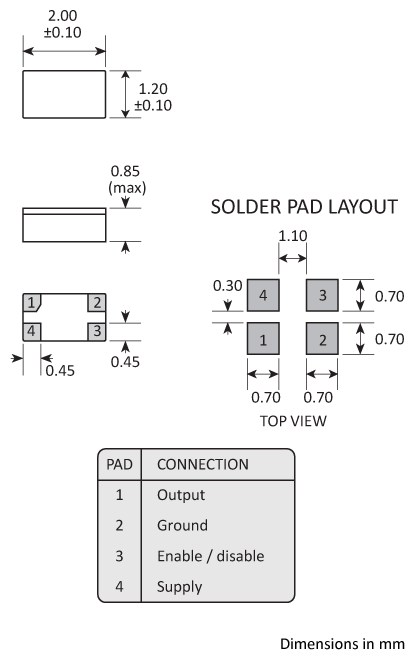

Package Drawing
Footprint
Ordering Information

To request a quotation for the OV7605C8 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Enable / Disable Function
Input (pad 3)Output (pad 1)
'1' level Enabled
'0' level Disabled

Note: Pad 3 should not be allowed to float

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:178 / B:8 / C:2.3 / D:1.5 / E:4 / F:0.9 / G:61.5 / H:21

Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

Ceramic base and lid

Compliance

PB free icon Lead-free (< 0.1% by weight )

ROHS icon RoHS compliant with no exemptions. See our declaration

REACH icon REACH compliant. See our statement

Conflict minerals icon Free of conflict minerals. See our declaration

Halogen free icon Free of Halogens. See our declaration

Ozone depletion icon Free of Ozone-depleting substances. See our declaration

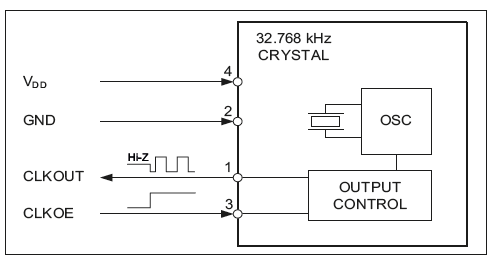

Block Diagram
Block Diagram
