The 8-pad 3.2x1.5 Golledge Real Time Clock package

RV-3032-C7

RTC module I2C bus High Accuracy

  • Ultra low power consumption 160nA @ 3V
  • Excellent time accuracy ±2.5ppm -40 to +85°C
  • 12-bit temperature sensor accuracy ±1°C typical
  • Timestamped external event input detection with interrupt
  • Trickle Charger with charge pump
DOWNLOAD PDF
Configurable Options
ParameterOption Code
Qualification
A
Quantity / Special Request

Please specify the quantity you require below.

The RV-3032-C7 is supplied on tape and reel. 1k or 3k pcs per reel are the standard T&R pack sizes for this product. Partial quantities may be supplied on tape (no reel), or in bulk.

Product Description

The RV-3032-C7 ultra-miniature real time clock module is available with optional AEC-Q200 qualification and provides the best combination of high accuracy and low power consumption, within a tiny 3.2 x 1.5mm package. Together with a range of unique features this RTC is perfect for applications that require "always-on" time keeping.

Designed with applications such as wearables and IoT in mind the RV-3032-C7 features superbly low current consumption of just 160nA typ. (3.0V) and features trickle charger with pump charge.

The RV-3032-C7 also features unique temperature alarm capabilities, including temperature time stamping and programmable alarm functionality. The user programmable password ensures protection of time, control and configuration registers. Also, the interrupt gated high frequency clock output function of the RV-3032-C7 can provide a microcontroller clock when needed, negating the need for a separate crystal and saving the energy used starting the oscillator to handle each interrupt.

The in-built digital temperature compensation (DTCXO) functionality ensures precision time keeping of ±2.5ppm over the entire -40 to +85ºC operating temperature range. Additional features include alarm functionality, programmable counters, selectable interrupt and clock output functions, 16 bytes User RAM and 32 bytes User EEPROM.

Specifications
Frequency 32.768kHz
Dimensions 3.2 x 1.5 x 0.8mm
Time accuracy ±1.5ppm max (0.13s/day), 0+50°C
±2.5ppm max (0.216s/day), -40+85°C
Operating temperature range -40 to +85°C
Storage temperature range -55 to +125°C
Supply voltage (VDD) 1.2 ~ 5.5V
Supply current (time-keeping, VDD=3.0V) 160nA typ / 210nA max
Ageing (25°C) ±3ppm max first year
Shock and vibration resistance ±5ppm, 5,000g, 0.3ms, ½ sine
±5ppm, 20g, 10.0 ~ 2,000Hz
Soldering condition Reflow, 260°C, 20 sec max
Clock output frequencies (programmable) 32.768kHz, 1024Hz, 64Hz, 1Hz crystal mode
8192Hz ~ 52MHz HF clock mode
Net mass 11.4mg

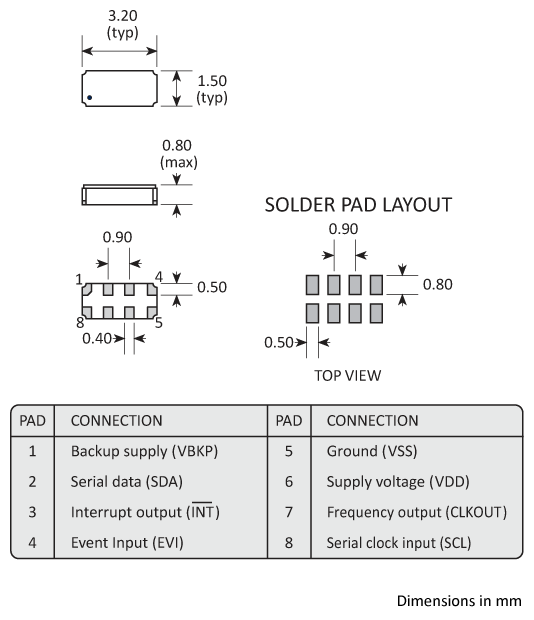

Package Drawing
Footprint
Ordering Information

To request a quotation for the RV-3032-C7 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Once we've received your request our expert team will then produce a quotation tailored to meet your needs using the option codes you've selected.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

Tape & Reel Specification
Tape and Reel specifications for the GTXO-C77V

A:178* B:12 C:3.5 D:1.8 E:4.0 F1.15 G:62 H:21
*Larger reel sizes are available

Handling & Storage

ESD icon Human Body Model (HBM) 1A (250V to <500V)

MSL Moisture Sensitivity Level (MSL): 1 (or not applicable)

Construction

SON 8-pin ceramic package

Compliance

PB free icon Lead-free (< 0.1% by weight )

ROHS icon RoHS compliant with no exemptions. See our declaration

REACH icon REACH compliant. See our statement

Conflict minerals icon Free of conflict minerals. See our declaration

Halogen free icon Free of Halogens. See our declaration

Ozone depletion icon Free of Ozone-depleting substances. See our declaration

Supply Partner

The RV-3032-C7 is manufactured by Micro Crystal and stocked and supplied by Golledge.

Other Information

An evaluation/development board for the RV-3032-C7 is also available on request. Please contact our expert advisers at sales@golledge.com for more information.

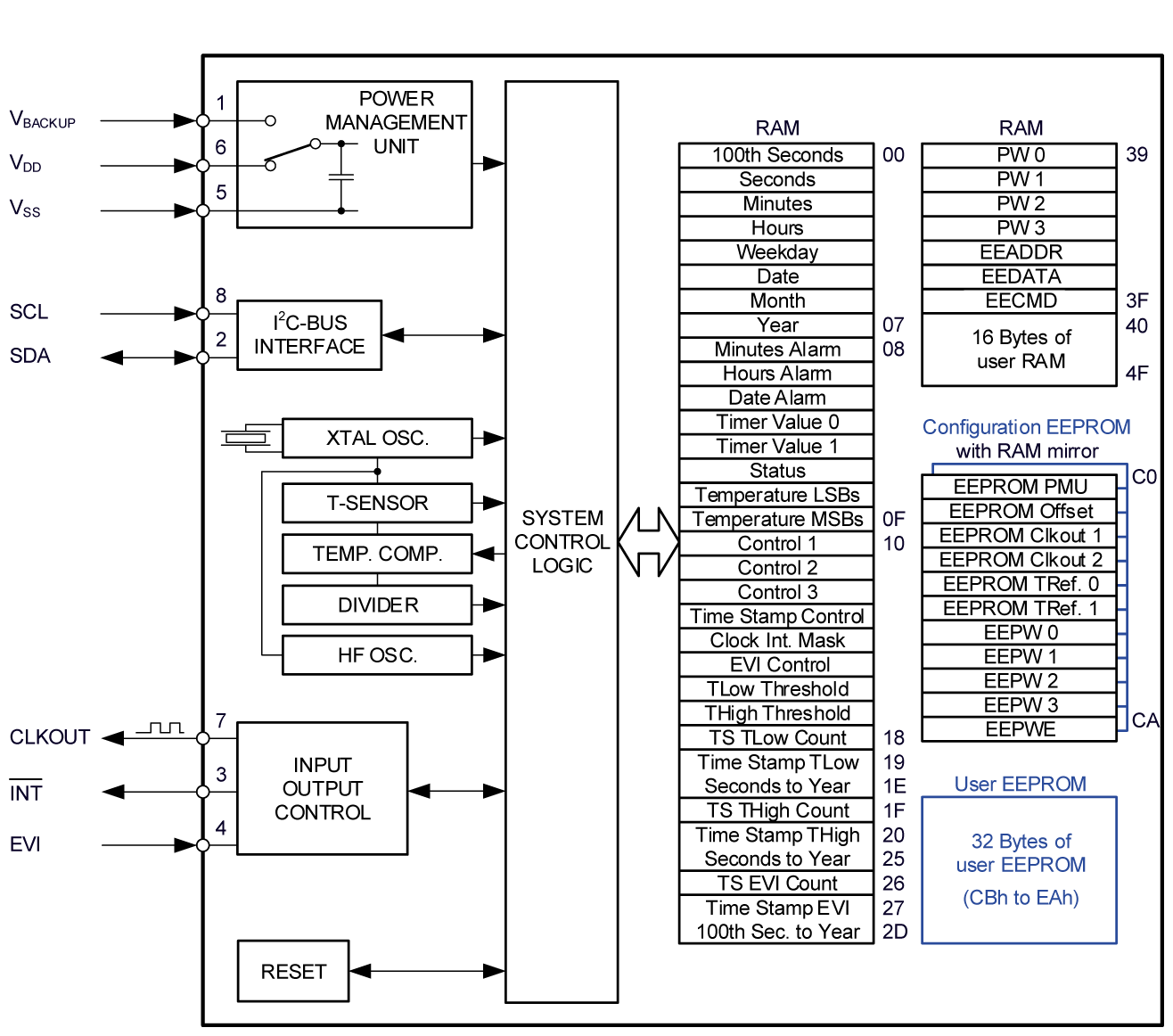

Block Diagram
Block Diagram
