UM-1J | SM Crystal Formed Leads (8.0mm Height)

Configurable Options
Frequency
kHz MHz GHz
Calibration tolerance
Any
±5ppm	L
±7.5ppm	M
±10ppm	1
±20ppm	2
±30ppm	3
Other values (±3ppm ~ ±100ppm)

Temperature stability
Any
±5ppm	L
±7.5ppm	M
±10ppm	1
±20ppm	2
±30ppm	3
Other values (±3ppm ~ ±100ppm)

Operating temperature range
Any
0 to +50°C	0
-10 to +60°C	1
-20 to +70°C	2
-30 to +80°C	3
-40 to +85°C	4
Other value:

Circuit condition
Any
12pF	B
16pF	D
20pF	F
30pF	J
Series resonant	S
Other value:

Oscillation mode
Any
Fundamental	F
3rd overtone	3
5th overtone	5
7th overtone	7

Product Description

The UM1-J surface mount crystal solution features formed leads for closer board stacking.

Available over a very wide frequency range of 1.0 ~ 300MHz, the UM-1J provides a good existing design replacement solution. This crystal solution also features a choice of operating temperature ranges including industrial -40 to +85°C, a range of temperature stabilities, as good ±5ppm, and a range of available circuit conditions.

For designs where ESR value is paramount this crystal also comes with oscillation mode options, including fundamental mode (available up to 55.0MHz), 3rd overtone, 5th overtone or 7th overtone.

Specifications

Frequency range	3.579 ~ 300MHz
Dimensions	11.6 x 7.8 x 3.5mm
Storage temperature range	-40 to +85°C
Static capacitance (C₀)	7pF max
Equivalent series resistance	200Ω max (3.5 ~ 4.99MHz) 150Ω max (5.0 ~ 5.99MHz) 120Ω max (6.0 ~ 6.99MHz) 100Ω max (7.0 ~ 7.99MHz) 90Ω max (8.0 ~ 9.99MHz) 40Ω max (10.0 ~ 15.99MHz) 30Ω max (16.0 ~ 54.99MHz) 45Ω max (30.0 ~ 49.99MHz, 3rd OT) 60Ω max (50.0 ~ 100MHz, 3rd OT) 90Ω max (60.0 ~ 150MHz, 5th OT) 150Ω max (130 ~ 300MHz, 7th OT)
Ageing	±3ppm max first year
Test drive level	100µW
Soldering conditions	260°C, 10sec max x 2

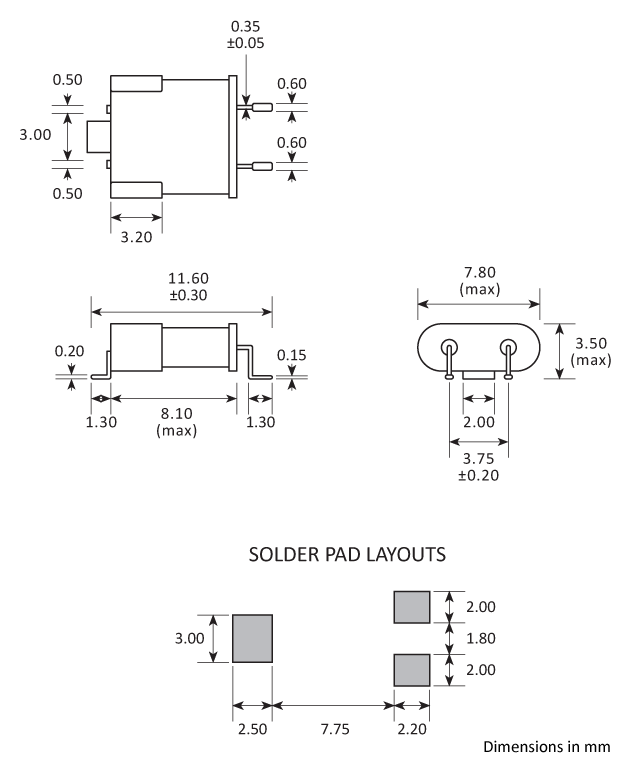

Package Drawing

Package footprint and pad configuration drawing for the Golledge UM-1J Crystal showing full dimensions.

Ordering Information

To request a quotation for the UM-1J please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.

ESR Values

The table shows the maximum ESR values in ohms across the available frequency range of the UM-1J.

Frequency	Oscillation Mode	ESR Value/ohms
3.5 ~ 4.99	Fundamental	200
5.0 ~ 5.99	Fundamental	150
6.0 ~ 6.99	Fundamental	120
7.0 ~ 7.99	Fundamental	100
8.0 ~ 9.99	Fundamental	90
10.0 ~ 15.9	Fundamental	40
16.0 ~ 55.0	Fundamental	30
30.0 ~ 49.0	3rd Overtone	45
50.0 ~ 100	3rd Overtone	60
60.0 ~ 150	5th Overtone	90
130 ~ 300	7th Overtone	150
