MS3V-T1R | Square Profile SM Crystal

Configurable Options
Frequency
32.768kHz
Other value:

Calibration tolerance
Any
±20ppm
±30ppm
±100ppm
Other value:

Circuit condition
Any
6pF
7pF
9pF
12.5pF

Product Description

The MS3V-T1R formed lead surface mount crystal is available at low frequencies between 32.0 ~ 200kHz and features unique square profile for pick and place with ultra-miniature 1.48mm footprint.

The MS3V-T1R also features a range of calibration tolerance and circuit condition options, in addition to high shock and vibration resistance, making this crystal ideal for a range of applications requiring a robust crystal solution.

Specifications

Frequency range	32.0 ~ 200kHz
Dimensions	6.7 x 1.4 x 1.4mm
Standard frequency	32.768kHz
Operating temperature range	-40 to +85°C
Storage temperature range	-55 to +125°C
Static capacitance (C₀)	0.9pF typ
Motional capacitance (C₁)	2.1fF typ
Equivalent series resistance	65kΩ max @ 25°C 90kΩ max after reflow
Ageing	±3ppm max first year
Drive level	1.0µW max
Turnover temperature (T₀)	+25°C ±5°C
Frequency / temp coefficient	-0.035ppm/°C² ±10% typ
Shock resistance	±5ppm max 5,000g, 0.3ms, ½ sine
Vibration resistance	±5ppm max 20g rms 10.0 ~ 2,000Hz
Soldering conditions	260°C, 20sec max
Termination	Gold flashed leads, 1.00mm pitch
Net mass	47.8mg

Package Drawing

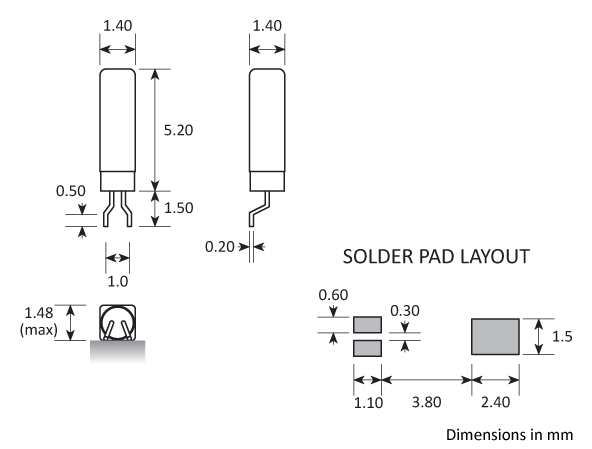

Package footprint and pad configuration drawing for the Golledge MS3V-T1R Crystal showing full dimensions.

Ordering Information

To request a quotation for the MS3V-T1R please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
