GOXO-149 | Surface Mount Low Phase OCXO

Configurable Options
Frequency
kHz MHz GHz
Temperature stability
Any
< ±2x10^-8	P
< ±5x10^-8	N
< ±1x10^-7	M
Operating temperature range
Any
0 to +70°C	E
-20 to +75°C	F
-40 to +70°C	G
-40 to +85°C	I
Frequency adjustment
Any
None	T
±10ppm, 1.65V ±1.35V, positive slope, 5% linearity	V

Product Description

The GOXO-149 OCXO with LVCMOS output and optional electronic frequency control, features 14.0 x 9.0 x 8.51mm surface mount package, making it ideal for a range of applications where OCXO-level phase noise performance is needed but board space is also paramount.

Requiring supply voltage of 3.3V at frequencies from 10.0 ~ 80.0MHz, the GOXO-149 is available with a choice of operating temperature ranges including commercial, extended and industrial operating temperature range (-40 to +85°C).

The GOXO-149 features excellent phase noise performance, with noise floor of -154 dBC/Hz @ 100kHz (10.0MHz example), and equivalent phase jitter performance of 0.25ps typical.

Specifications

Frequency range	10.0 ~ 80.0MHz
Dimensions	14.10 x 9.10 x 8.51mm
Ageing (after 30 days)	< ±1x10^-8 per day < ±5x10^-7 first year
Calibration tolerance @ 25°C	< ±1x10^-6
Frequency stability	< ±2x10^-8 per 5% change in load < ±2x10^-8 per 5% change in V_DD
Overall stability^*	±4.6x10^-6 max
Storage temperature range	-55 to +125°C
Output waveform	15pF LVCMOS 45:55% @ 50%V_DD
Rise / fall times	6.5ns
Start up time	10ms
Supply voltage (V_DD)	+3.3V (±5%)
Power consumption (0+70°C)	2.5W max at switch on 1.1W typ when stabilised at 25°C
Warm up (to within spec)	60s at +25°C 90s at -40°C
Allan variance (1 sec)	< ±1x10^-9
Phase noise (@ 10.0MHz)	< -100 dBc/Hz @ 10Hz < -128 dBc/Hz @ 100Hz < -145 dBc/Hz @ 1kHz < -151 dBc/Hz @ 10kHz < -154 dBc/Hz @ 100kHz
Phase jitter RMS	0.25ps typ, 0.35ps max, 12kHz~f_o/2

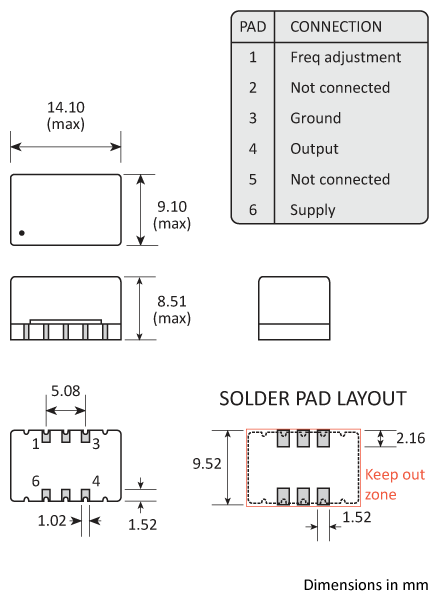

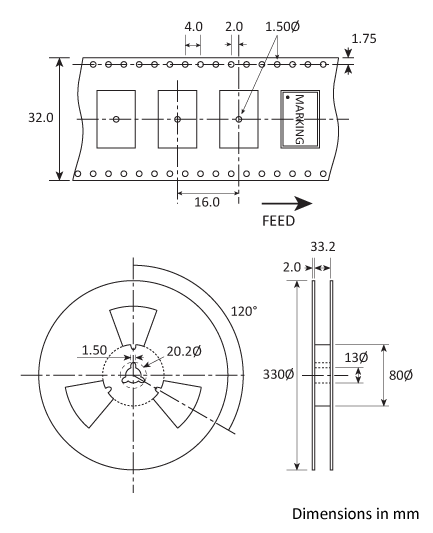

Package Drawing

Ordering Information

To request a quotation for the GOXO-149 please use the configurable options form to choose the options you require and then submit your configured product to our team. Our expert advisers are always happy to help with your requirements and can be contacted on +44 1460 256 100 or at sales@golledge.com.

Following product selection you will be issued with a seven character Golledge part number. Your Golledge part number is the internationally accepted Golledge manufacturing part number (MPN) that should be used for all project documentation, including bills of materials (BoMs) and purchase orders.

If you have any queries regarding any of our documentation our dedicated sales team will be happy to help.
